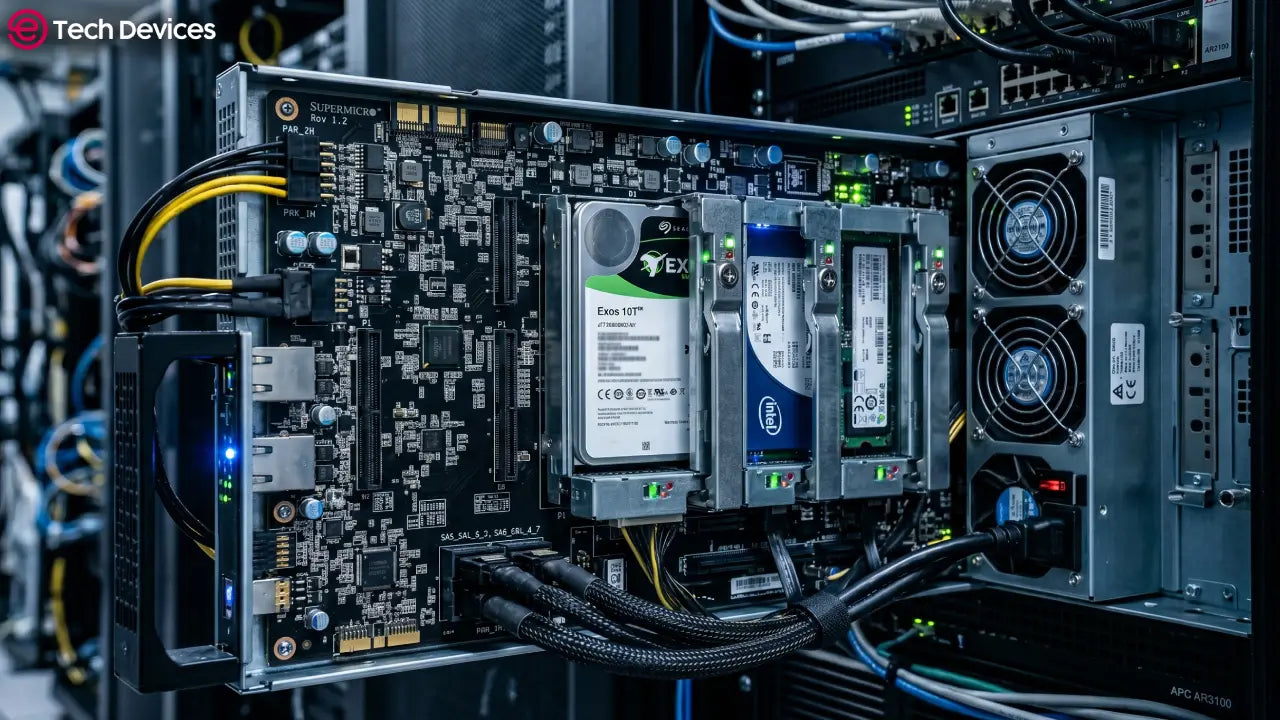

What Is a Backplane in a Server and Why Does It Matter?

Modern enterprise servers support virtualization, cloud computing, AI workloads, databases, and large-scale storage environments that need dependable performance and continuous uptime.

As server infrastructures become denser and more advanced, maintaining effective cooling, organized connectivity, scalable hardware management, and easy maintenance becomes increasingly vital.

To support these demands, today's servers use specialized internal architectures that strengthen communication between components while minimizing cable complexity and improving airflow.

One of the most vital components enabling this functionality is the server backplane. This guide explains what server backplanes are, their importance, types, benefits, applications, and role in enterprise infrastructure.

What Is a Server Backplane?

A server backplane is a specialized printed circuit board that connects internal server components through the use of built-in slots and communication pathways. It acts as a centralized hub for power distribution and data transfer between storage drives, RAID controllers, processors, and network modules.

Unlike traditional systems that depend on separate SATA and power cables, enterprise servers use backplanes to ease connectivity and enhance hardware organization.

Drives are plugged directly into the backplane, creating a cleaner, scalable build. Backplanes are used in rack servers, blade servers, storage arrays, and enterprise setups for efficient and modular hardware management.

Recommended: Tower vs Rack vs Blade Servers

Importance of Server Backplanes

Server backplanes are important in modern enterprise systems because they ensure efficient internal connectivity, smooth power delivery, and organized hardware management across complex server settings.

Enhanced Hardware Organization

Backplanes minimize cable clutter by replacing numerous internal cables with built-in PCB traces. This forms cleaner server layouts and eases maintenance procedures.

Better Cooling Efficiency

Excessive cabling can obstruct airflow and trap heat inside dense server chassis. Backplanes enhance airflow pathways, helping processors, memory modules, and storage devices maintain smooth operating temperatures.

Hot-Swappable Hardware Support

One of the biggest benefits of a server backplane is hot-swapping capability. Administrators can remove failed drives and install replacements without shutting down the server, minimizing downtime in crucial environments.

Dependable High-Speed Communication

Today, storage technologies, like SAS and NVMe SSDs, operate at extremely high transfer speeds. Backplanes offer controlled communication pathways that minimize signal interference and maintain stable data transfer.

Scalable Infrastructure

Backplanes support modular expansion through standardized slots, making it easier to upgrade storage and hardware components as infrastructure demands increase.

Core Functions of a Server Backplane

A server backplane performs many essential tasks that enhance hardware reliability and operational efficiency in enterprise settings.

These functions help enterprise servers maintain performance, dependability, and ease of maintenance operations.

Types of Server Backplanes Based on Signal Handling

Different enterprise environments need varying levels of communication management and performance. Backplanes are hence classified according to how they manage signals and data communication.

Passive Backplanes

Passive backplanes contain connectors and PCB traces without active electronic components, like processors or signal controllers. Communication management is handled by the connected hardware devices themselves.

Features of Passive Backplanes

• Easy PCB architecture
• Lower power consumption
• Minimized heat generation
• High reliability
• Affordable deployment

Passive backplanes are typically used in industrial computers, embedded systems, and entry-level enterprise or business servers.

Active Backplanes

Active backplanes consist of integrated electronic components that manage and boost communication between connected devices. These components may include clock buffers, switches, signal processors, and controllers.

Features of Active Backplanes

• Improved signal management
• Higher bandwidth support
• Enhanced communication stability
• Advanced bus control
• Better scalability

Active backplanes are broadly used in telecommunications infrastructure, enterprise storage arrays, and high-performance computing environments.

Hybrid Backplanes

Hybrid backplanes combine passive and active sections within the same board. Some areas deliver simple signal routing, while others consist of active circuitry to streamline communication.

Features of Hybrid Backplanes

• Flexible architecture
• Balanced price and performance
• Advanced compatibility
• Improved signal conditioning
• Support for mixed workloads

Hybrid backplanes are usually deployed in modular enterprise systems and scalable storage setups.

Types of Backplanes Based on Physical Design

Backplanes are also categorized in accordance with their physical placement inside the server chassis.

Standard Backplanes

Standard backplanes are typically installed at the rear or bottom section of a server enclosure. Components connect from a single side of the board, which makes this design common in traditional rack servers and storage systems.

Features of Standard Backplanes

• Single-sided connectivity
• Easy hardware installation
• Simpler maintenance access
• Effective cable reduction
• Common in rack-mounted servers

These backplanes are commonly used in traditional rack servers requiring easy and dependable hardware connectivity.

Midplanes

Midplanes are positioned in the center of a chassis and enable modules to connect from both the front and rear at the same time. Blade servers commonly use this architecture due to it supporting high-density modular environments.

Features of Midplanes

• Dual-sided connectivity
• Enhanced airflow management
• Better hardware density
• Easy maintenance access
• Improved modular scalability

Midplane architectures are especially useful in data centers requiring small and scalable server deployments.

Industry-Standard Backplane Architectures

Many standardized backplane technologies are used across enterprise computing, industrial systems, telecommunications, and aerospace sectors.

CompactPCI (cPCI)

CompactPCI extends traditional PCI technology into rugged modular systems, which are built for industrial and embedded computing applications.

VME and VPX

VME and OpenVPX backplanes support rugged high-bandwidth systems, which are used in military, aerospace, and defense environments where durability and reliability are crucial.

AdvancedTCA and MicroTCA

These architectures are typically used in telecommunications infrastructure and high-density enterprise computing due to their scalability and carrier-level reliability.

Backplane Ethernet

Modern backplanes highly support native Ethernet communication standards, like 10GBASE-KR and 100GBASE-KP4 for high-speed networking across the backplane itself. These backplane Ethernet standards align closely with how network switches manage high-throughput traffic across enterprise environments.

Benefits of Server Backplanes

Server backplanes offer several operational and performance advantages that strengthen enterprise infrastructure efficiency.

Simplified Maintenance

Backplanes ease hardware servicing because administrators can replace drives and components without the need for extensive cable handling.

Higher Storage Density

Several drives can be installed within compact server chassis builds, maximizing storage capacity and rack deployment.

Better Reliability

Reducing internal cabling minimizes the risk of loose connections, airflow restrictions, and communication failures.

Rapid Deployment

Centralized connectivity eases server assembly and reduces installation complexity in enterprise implementations.

Future-Ready Infrastructure

Modern backplanes support evolving storage technologies, like NVMe and mixed-drive environments, enabling organizations to scale infrastructure more efficiently.

Common Applications of Server Backplanes

Server backplanes are used across multiple industries that need scalable and dependable computing environments.

Data Centers

Large-scale data centers use backplanes to support dense storage configurations while maintaining organized airflow and easing hardware management.

Cloud Computing Platforms

Cloud providers rely on modular server architectures that enable rapid hardware replacement and scalable growth.

Storage Arrays and NAS Systems

Backplanes deliver reliable communication between multiple storage drives and RAID controllers in high-capacity storage setups.

Telecommunications Infrastructure

Telecom systems use advanced backplane architectures to support high-bandwidth networking and carrier-grade dependability.

Aerospace and Defense Systems

Ruggedized backplanes, like VPX, are used in harsh operating environments requiring smooth communication and durability.

Tips for Choosing the Right Server Backplane

Opting for the right server backplane ensures compatibility, scalability, cooling efficiency, and lasting infrastructure reliability.

Check Storage Compatibility

Before selecting a backplane, make sure it supports the required storage interfaces such as SATA, SAS, or NVMe. Many modern enterprise setups use mixed-drive environments, making compatibility vital.

Consider Scalability Needs

Organizations planning future storage expansion should select backplanes with sufficient drive bays and modular upgrade support. Scalable architectures reduce the need for huge infrastructure redesigns later.

Assess Cooling and Airflow Design

Dense server environments generate significant heat during operation. Backplanes built for efficient airflow help maintain lower operating temperatures and strengthen hardware reliability.

Choose the Correct Backplane Type

Different workloads need different backplane architectures. Passive backplanes are ideal for simpler deployments, while active or hybrid backplanes deliver better support for high-speed enterprise workloads.

Verify Signal Integrity Support

High-speed storage technologies require dependable signal transmission. Enterprise-grade backplanes with robust signal integrity help in avoiding communication errors and performance bottlenecks.

Ensure Chassis Compatibility

The backplane must align with the server chassis form factor and motherboard layout. Compatibility problems can result in installation problems and limit hardware functionality.

Consider Future Technology Support

Modern enterprise infrastructures continue evolving toward cloud storage and networking technologies. Opting for a backplane with support for emerging standards helps future-proof the server environment.

Conclusion

In conclusion, server backplanes are a core component of today’s enterprise infrastructure, allowing efficient connectivity, airflow, and scalable hardware management. By minimizing cable complexity and supporting dependable high-speed communication, server backplanes enhance performance and simplify maintenance across dense server environments.

As data centers continue evolving toward rapid and more modular systems, backplanes remain important for ensuring stability, flexibility, and long-term infrastructure efficiency in enterprise computing platforms.

FAQs

Q: What is the purpose of a server backplane?

A: A server backplane connects internal hardware parts while distributing power and routing communication signals between devices.

Q: Why are backplanes important in enterprise servers?

A: They enhance airflow, ease cable management, support hot-swapping, and allow scalable hardware expansion.

Q: What is the difference between active and passive backplanes?

A: Passive backplanes only route signals, while active backplanes consist of electronic components that handle communication and signal optimization.
