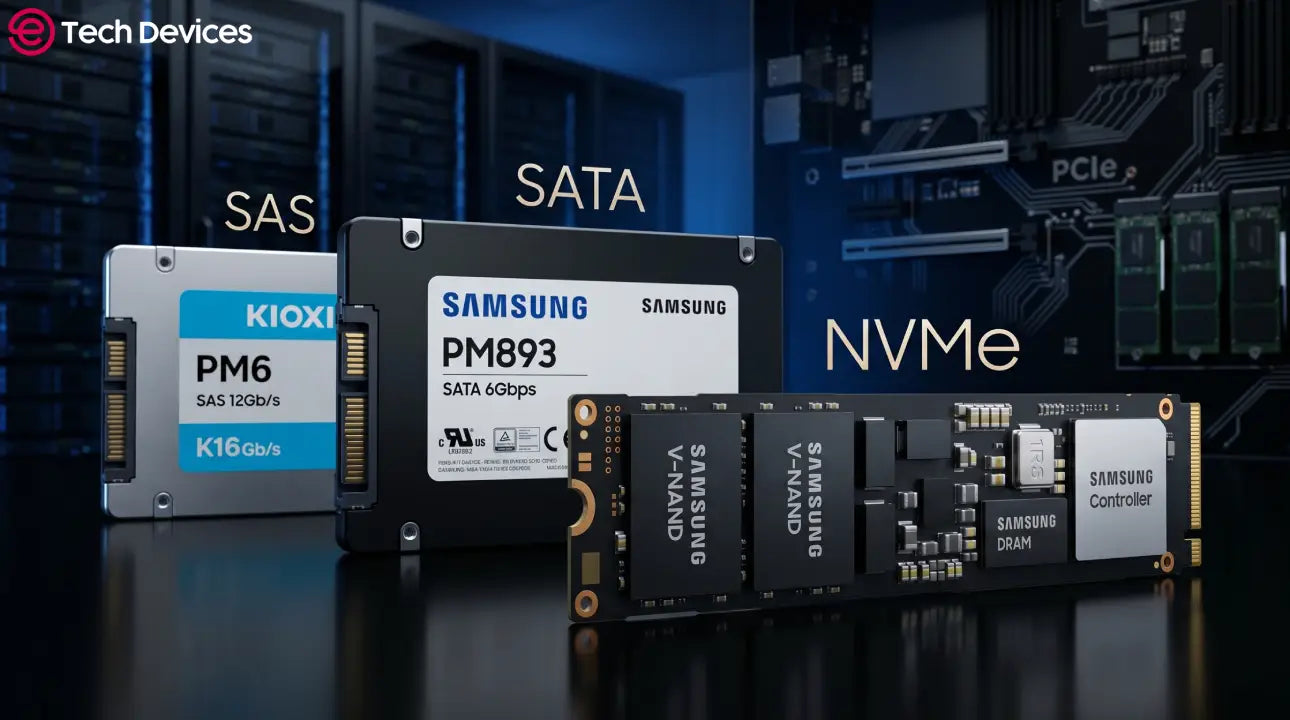

SAS vs SATA vs NVMe: How to Choose the Right Enterprise SSD

Enterprise storage decisions carry serious consequences. A wrong SSD choice can bottleneck your database, slow down your virtual machines, and quietly drain your IT budget over time. Therefore, understanding the core differences between SAS, SATA, and NVMe SSDs is not optional for IT decision-makers today.

This SSD buying guide breaks down each interface clearly. You will also find a workload-based selection guide, two comparison tables, and answers to the most frequently asked enterprise SSD questions. By the end, you will know exactly which SSD fits your infrastructure.

Why the SSD Interface Matters More Than You Think

Most IT buyers focus on storage capacity. However, the interface connecting the SSD to your server determines how fast data moves, how reliably it arrives, and how much your system scales under load. High-performance SSDs, such as SATA, SAS, and NVMe, are three fundamentally different paths between storage and the processor.

Recommended Read: Before selecting an interface, make sure your capacity planning is solid - see our guide on how to calculate data storage requirements for your business.

Moreover, each interface suits a different workload profile. Picking the wrong one means paying for features you do not need or suffering bottlenecks you cannot explain. So, let us start with the basics before moving into performance comparisons.

What Is a SATA SSD?

SATA (Serial ATA) is the oldest of the three interfaces. It was originally designed for spinning internal hard drives, and SSD manufacturers later adapted it for flash storage. SATA III caps throughput at 600 MB/s, which is a hard ceiling inherited from the protocol itself.

Despite this limitation, SATA SSDs remain relevant in enterprise environments. They fit existing SATA-ready server bays without any hardware changes. Additionally, they cost less per terabyte compared to SAS or NVMe alternatives, making them attractive for budget-sensitive workloads.

Key Advantages of SATA SSDs

• Low cost per terabyte: SATA SSDs offer the most affordable enterprise storage density on the market today.
• Wide compatibility: Most servers already include SATA ports, so no additional host bus adapters are necessary.
• Suitable for cold data tiers: Backup repositories, archive storage, and read-heavy file servers perform well on SATA SSDs.
• Lower power consumption: SATA SSDs consume less power than SAS or NVMe options under typical workloads.

Recommended Read: Looking to reduce storage costs across your infrastructure? Explore our IT cost-saving strategies for enterprise infrastructure for a broader framework beyond just SSD selection.

Limitations of SATA SSDs

• The throughput ceiling of 600 MB/s limits performance for I/O-intensive applications.
• SATA does not natively support dual-port connections, reducing fault tolerance.
• Latency runs higher than both SAS and NVMe under random read/write conditions.

What Is a SAS SSD?

SAS (Serial Attached SCSI) is an enterprise-grade interface built specifically for business-critical environments. Unlike SATA, SAS supports dual-port connectivity, which means the drive maintains two independent data paths to the server. If one path fails, the other takes over without interruption.

Furthermore, SAS SSDs support hot-swapping natively. This means administrators can replace a failed drive without powering down the server. For organizations running 24/7 operations, this capability alone justifies the higher cost of SAS storage.

Key Advantages of SAS SSDs

• Dual-port redundancy: Two simultaneous data paths protect against single-point failures in storage connectivity.
• Full hot-swap capability: Drive replacement happens live without downtime or service interruption.
• Higher endurance ratings: Enterprise SAS SSDs carry DWPD ratings built for continuous heavy writes - Seagate SSDs like the Nytro series, for example, are purpose-engineered for exactly these sustained write demands.
• Longer queue depths: SAS handles up to 254 command queue entries, improving multi-threaded workload efficiency.
• Proven reliability: SAS has decades of deployment data behind it in mission-critical production environments.

Limitations of SAS SSDs

• SAS requires a dedicated HBA (Host Bus Adapter) or SAS expander, adding upfront hardware cost.
• Maximum throughput tops out around 1,200 MB/s, which falls behind modern NVMe drives.
• SAS SSDs carry a higher price per terabyte compared to SATA alternatives.

What Is an NVMe SSD?

NVMe (Non-Volatile Memory Express) was designed from scratch for flash storage. It runs over PCIe lanes directly to the CPU, bypassing the traditional storage controller stack entirely. Consequently, NVMe achieves latencies as low as 20 microseconds and throughput exceeding 7,000 MB/s on PCIe 4.0 drives. Leading Samsung SSDs and other top manufacturers have pushed NVMe performance further with each successive drive generation.

NVMe also supports up to 65,535 command queues with 65,535 commands per queue. In contrast, SATA supports just one queue with 32 commands. This architectural difference directly translates into superior performance under high-concurrency workloads like database transactions, AI model training, and real-time analytics.

Key Advantages of NVMe SSDs

• Exceptional throughput: PCIe 4.0 NVMe drives deliver over 7,000 MB/s sequential read speeds in production.
• Ultra-low latency: NVMe reaches sub-25 microsecond latencies, dramatically reducing response times for OLTP databases.
• Massive queue depth: 65K queues allow concurrent handling of millions of small I/O requests efficiently.
• Ideal for AI and HPC: Large model training and simulation workloads demand exactly the bandwidth NVMe provides.
• U.2 and M.2 form factors: NVMe fits modern server designs with compact drive form factors that save rack space.

Limitations of NVMe SSDs

• Hot-swap support varies by server platform and requires specific backplane hardware.
• NVMe drives generate more heat than SATA, requiring adequate server cooling design.
• Some older enterprise servers lack native NVMe support without PCIe NVMe SSD adapter cards.

SAS vs SATA vs NVMe: SSD Interface Comparison

The table below summarizes the core technical specifications across all three interfaces of business SSD solutions. Use this as a quick reference before evaluating drives for your specific workload.

As the table shows, NVMe leads on raw speed while SAS leads on enterprise reliability features. SATA wins only on cost and compatibility. Therefore, your selection should align with your workload demands rather than a single metric.

Choosing the Right SSD for Your Enterprise Workload

Performance numbers tell only part of the story. Workload characteristics, uptime requirements, budget constraints, and existing enterprise IT infrastructure all influence the right choice. The following breakdown addresses the most common enterprise scenarios.

High-Performance Databases

Transactional databases running Oracle, SQL Server, or PostgreSQL demand both low latency and consistent IOPS under concurrent load. NVMe server SSD excel here because they reduce query execution time significantly. Nevertheless, if your database runs in a high-availability cluster with dual-path storage requirements, SAS SSDs remain a strong option due to their native redundancy.

Virtualization and VDI

Virtualization platforms like VMware vSphere and Microsoft Hyper-V generate mixed random I/O patterns from many virtual machines simultaneously. As a result, NVMe or enterprise SAS SSDs handle this far better than server SSD. SSD for virtualization, especially NVMe, specifically benefits boot storms and storage vMotion operations because of its deep queue architecture.

Backup and Archive Storage

Backup devices and archive targets write sequentially in large blocks during off-peak hours. Consequently, SATA SSDs handle this efficiently at a fraction of NVMe or SAS costs. There is no performance justification for deploying NVMe drives in a pure backup target environment. Budget-conscious storage architects consistently choose SATA for this tier. For long-term cold archiving, some organizations also complement SATA SSDs with a tape drive solution for the most cost-effective retention layer.

AI, ML, and High-Performance Computing

Training large language models or running physics simulations requires feeding the processor with data faster than any spinning disk or SATA SSD can manage. NVMe is the only realistic choice for these workloads, whether deployed in dedicated GPU servers or high-density workstation systems. Modern data center GPU servers ship with multiple NVMe U.2 bays precisely because AI training pipelines saturate even PCIe 4.0 bandwidth.

Workload-to-SSD Selection Guide

The table below maps common enterprise workloads to the recommended SSD interface and explains the driving reason behind each recommendation.

SSD Endurance: What DWPD Means for Enterprise Buyers

Endurance defines how long a data center SSD lasts under continuous write pressure. Manufacturers express this as DWPD (Drive Writes Per Day) over the warranty period, typically three to five years. An SSD rated at 3 DWPD can have its full capacity written three times every day throughout the warranty term.

SATA SSD advantages are known. They typically carry 1 to 3 DWPD ratings. SAS SSDs commonly reach 3 to 10 DWPD for write-heavy applications. Enterprise NVMe storage drives range from 1 DWPD for read-optimized models up to 3 DWPD for mixed-use configurations. Always match the DWPD rating to your actual workload write intensity to avoid premature drive failure. Western Digital SSDs publish detailed endurance specifications across their enterprise lineup, making DWPD comparisons straightforward during procurement planning.

Endurance Recommendations by Role

• Read-optimized tiers (backup, archive): 1 DWPD is sufficient for most deployment scenarios.
• Mixed-use (general virtualization, file servers): Choose 3 DWPD-rated drives for sustainable performance.
• Write-intensive (logging, analytics ingest, OLTP): Select 5 to 10 DWPD drives to match sustained workload demands.

SSD Performance Comparison

Enterprise SSD Reliability: What to Look For Beyond Speed

Raw performance benchmarks attract attention, but enterprise reliability comes from several other factors. Power-loss protection (PLP) is one critical feature. Drives with capacitors protect in-flight data during unexpected power cuts; pairing drives with a UPS adds a critical second layer of power protection. Many consumer SSDs lack PLP entirely, making them unsuitable for server environments.

Additionally, the best enterprise SSDs include end-to-end data protection. This means the drive validates data integrity from the host interface all the way through internal NAND programming. As a result, silent data corruption events become detectable before they cause application errors.

Reliability Checklist for Enterprise SSD Procurement

• Power-Loss Protection (PLP): Confirm the drive includes onboard capacitors or supercapacitors.
• End-to-end data integrity: Look for T10 DIF or equivalent error detection across the full data path.
• Consistent latency QoS: Review vendor QoS specs, not just peak throughput numbers from marketing sheets.
• SMART monitoring support: Enterprise SSDs must expose health telemetry through standard SMART or NVMe Management Interface.
• Vendor support and warranty: Prioritize vendors offering five-year warranties with advance replacement programs.

Final Thoughts

The right enterprise SSD for servers choice depends entirely on matching the interface to the workload, not chasing the fastest specifications available. SATA SSDs serve cost-sensitive secondary storage effectively. SAS SSDs protect mission-critical applications through redundancy and hot-swap support. NVMe SSDs power the performance edge where speed translates directly into business outcomes.

Moreover, endurance ratings, power-loss protection, and vendor support programs matter as much as raw throughput numbers when selecting storage for production environments. Evaluate each factor against your actual workload requirements, uptime commitments, and budget constraints before finalizing any purchase decision.

When you align SSD interface selection with real workload demands, your Enterprise storage solutions infrastructure delivers consistent, reliable performance without unnecessary cost overhead.

Frequently Asked Questions

Q: Is NVMe for enterprise faster than SAS SSD?

A: Yes, NVMe delivers over 7,000 MB/s throughput and 20-microsecond latency, far exceeding SAS speeds, though SAS still leads on redundancy features.

Q: Are SATA SSDs still good for enterprise storage?

A: Yes, SATA SSDs suit backup, archive, and read-heavy workloads well. They fit existing infrastructure and cost far less than SAS or NVMe alternatives.

Q: Which SSD offers the best reliability for data centers?

A: SAS SSD benefits lead in reliability through dual-port design and hot-swap support, but modern enterprise NVMe drives now close that gap considerably as the SSD for data centers.

Q: What are the advantages of NVMe SSDs in enterprise environments?

A: NVMe offers ultra-low latency, massive queue depth, superior AI and analytics throughput, and compact form factors that suit modern high-density data center designs.

Q: How do NVMe, SAS, and SATA compare in high-intensity workloads?

A: NVMe dominates high-intensity workloads by offering massive parallel queues and ultra-low latency, whereas SATA and SAS eventually bottleneck modern CPUs.
